M550L EFI & EPS

M550L EFI & EPS

Overview

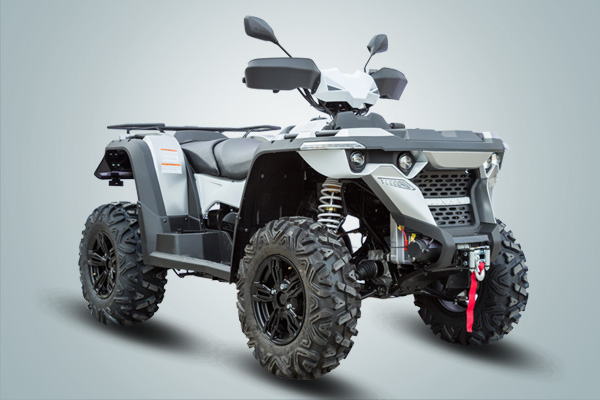

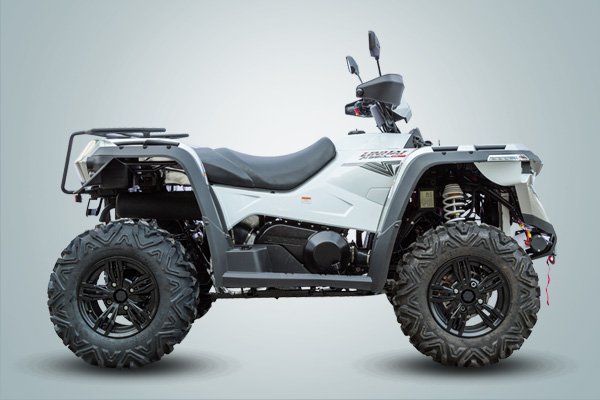

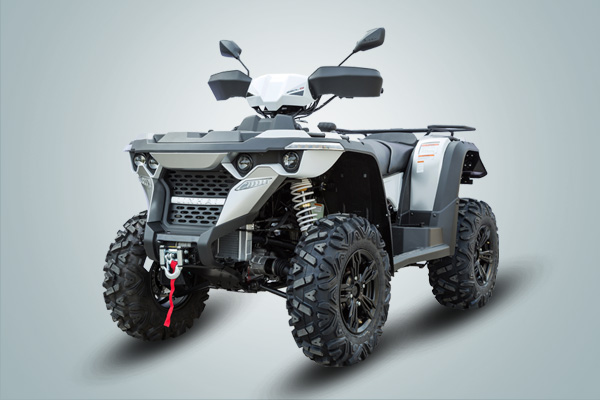

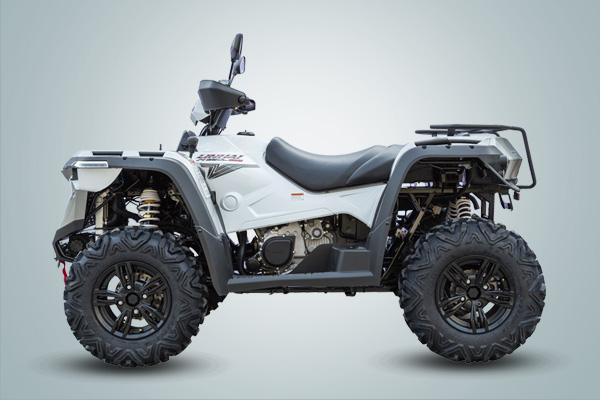

LINHAI ATV M550 EFI DISPLACEMENT: 493 cc
MAX POWER: 24kw/6500r/min
CLEARANCE: 253 MM
FUEL TANK CAPACITY: 14.5L

Specifications

Model	M550L EFI & EPS
DIMENSIONS AND CAPACITIES
Length×Width×Height mm	2283×1300×1293
WHEELBASE mm	1490
SEAT HEIGHT mm	900
Minimum Ground Clearance mm	253
DRY WEIGHT kg	365
LOAD CAPACITY kg	204
FUEL TANK CAPACITY L	14.5
ENGINE
TYPE	LH188MR-A
MODEL	Singe cylinder, 4 stroke, SOHC, liquid cooled, 4 valve
BORE×STROKE mm	87.5×82
DISPLACEMENT cc	493
COMPRESSION RATIO	10.2:1
MAX. POWER kW/（r/min）	24kw/6500r/min
MAX.TORQUE N•m（r/min）	39N.m/5500 r/min
TOP SPEED km/h	89
FUEL SUPPLY	EFI
START-UP TYPE	ELECTRIC STARTER
IGNITION TYPE	ECU
TRANSMISSION	CVT
DRIVE	Switchable 2WD/4WD
CHASSIS
BRAKE SYSTEM MODEL (F/R)	DISC/DISC
BRAKE SYSTEM CONTROL MODEL (F/R)	Hand brake,foot brake/Hand brake,foot brake
SUSPENSION (F/R)	Switchable 2WD/4WD / Switchable 2WD/4WD
SPECIFICATION OF TIRE (F/R)	AT25×8-12/AT25×10-12
COLORS AVAILABLE	RED, BLACK, WHITE
HOMOLOGATION	EEC & EPA
OPTIONS	EFI, EPS
