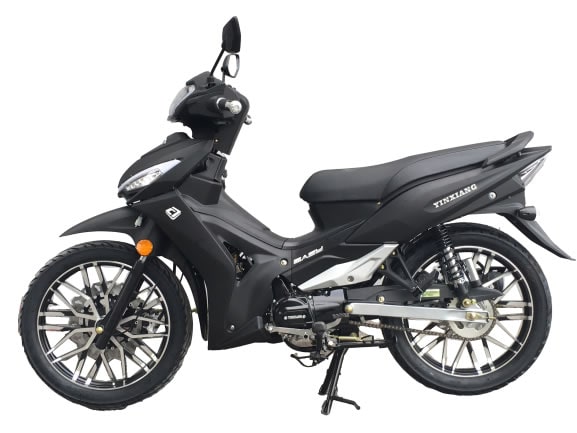

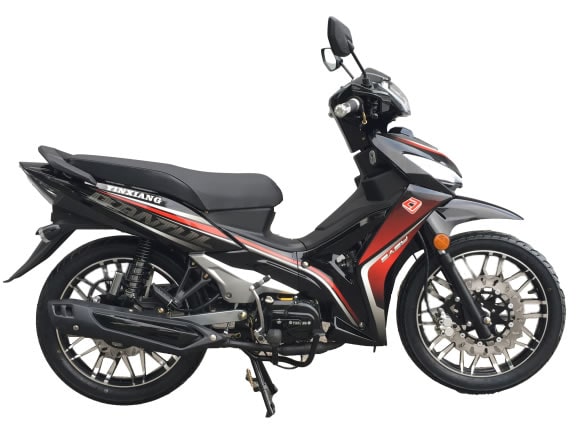

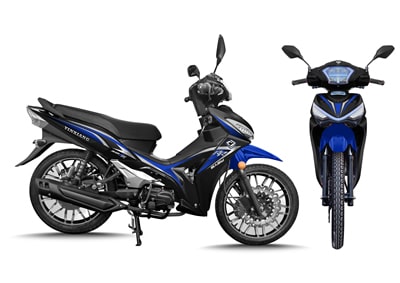

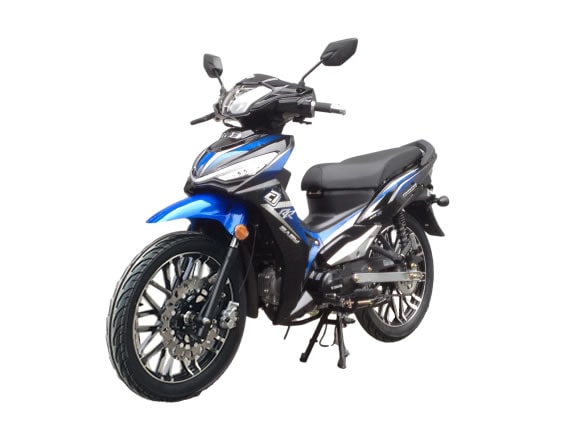

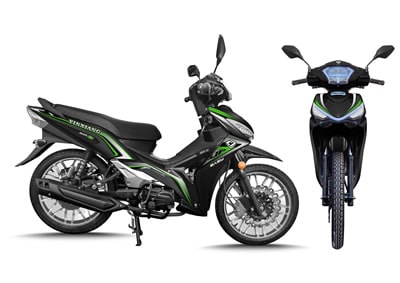

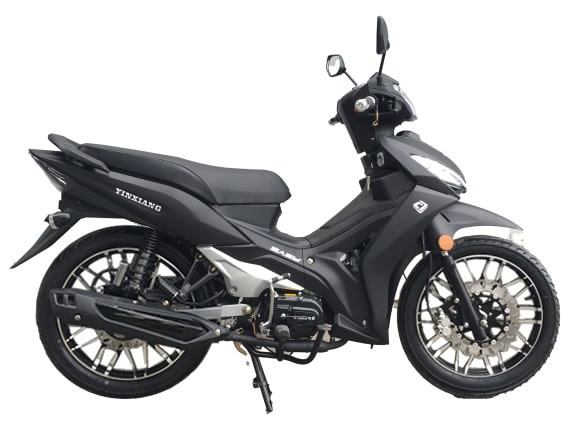

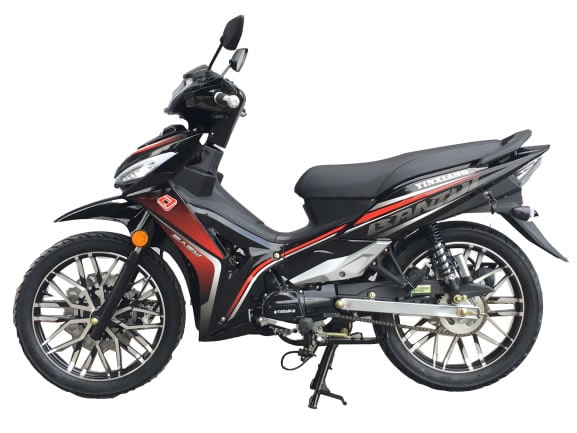

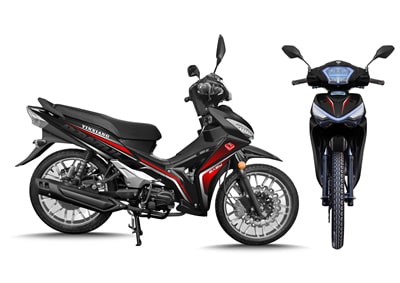

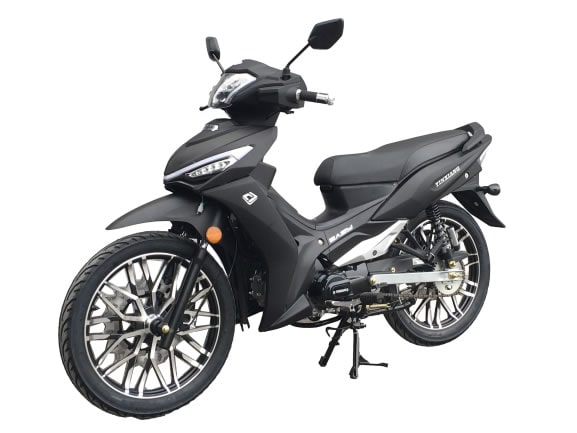

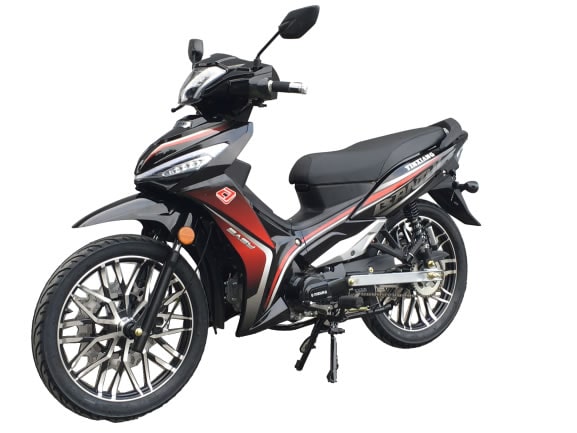

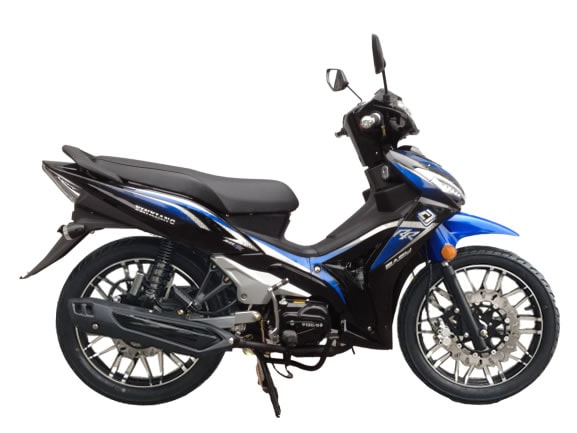

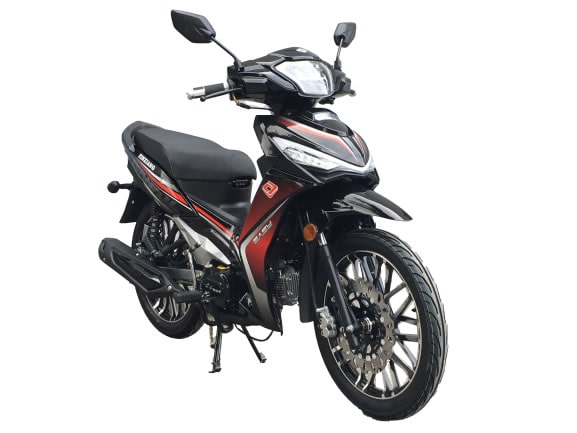

| MODEL: EASY |
|
ENGINE: 1P36FMA |
|
| VIN: LB405P2G |
|
| I.Technical description |
| mm Dimension (L*W*H) |
1850*720*1130 |
| mm Wheelbase |
1240 |
| mm The Min. ground distance |
130 |
| mm Seat height |
790 |
| Steering handle turing angle (Left/ Right) |
≤48°（Left≤45°Right≤44°） |
| mm Minimum turning radius mm |
Left 1870，Right 1825 |
| Final gear ratio |
14:36 |
| Climbing angle |
≥18° |
| Seat |
2 |
| Shift mode |
International 4-gear |
| Fuel tank capacity L |
3,3 |
| Fuel type |
90# |
| Kg Rated maximum load mass Kg |
176 |
| kg Vehicle mass weight Kg |
90 |
| Kg Curb weight Kg |
95 |
| Kg Factory checked maximum loadign weight Kg |
251 |
| Km/h Maximum speed Km/h |
45 |
| m Brake performance |
≤7m/30km/h |
| Starting performance |
13.73s(≤15s) |
| L/100Km Economic fuel consumption (100KM) |
1,7 |
| Braking method |
Front wheel |
Disc brake |
| Rear wheel |
Disc brake |
| Braking opearation method |
Front wheel |
Hand |
| Rear wheel |
Foot |
| Rim type |
Spoke |
| Rim specification |
17×1.4（Front） 17×1.6（Rear） |
| Tire specifications |
2.75-17（Front） 3.00-17（Rear） |
| Tire pressure (front/rear) Kpa |
（Front）225；（Rear）250 |

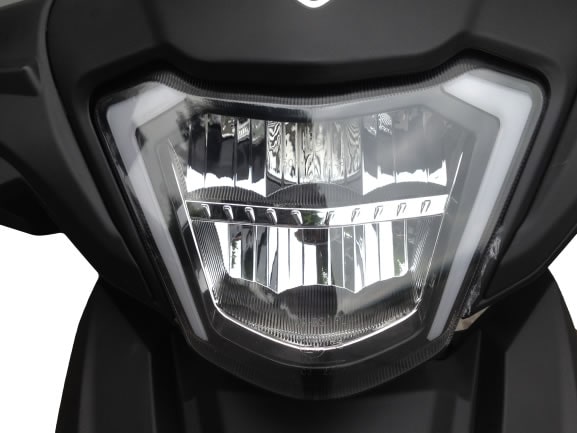

| Headlight bulb specifications and illumination |
12V-35W/35W ≥10000cd |
| Steering bulb specifications |
12V-10W |
| mm Battery specification & Dimension (L*W*H) |
12N7B-4B/150*87*95/ |
| II. Engine Technical description |
| Engine type |
single cylinder, 4-stroke, air-cooling, horizontal |
| Magneto motor type |
12V / 8 / AC |
| mm Stroke |
41,4 |
| mm Bore diameter |
39 |
| ml Cylinder working capacity |
48 |
| Compression ratio |
8.5：1 |
| Fuel type |
RQ-90 |
| L Oil capacity |
0,88 |
| Spark plug type |
D8RTC |
| mm Spark plug clearance |
0.6～0.7 |
| mm Valve clearance |
0.04～0.07 |
| Starting method |
Electric/Kick start |
| Lubrication type |
15W/40 |
| Lubrication method |
Pressure splash lubrication |
| Ignition method |
C.D.I |
| Carburator model |
EP20 |
| Carburator method |
Plunger type |
| Transmission type |
International 4-gear |
| Clutch type |
Multi-piece oil bath type (auto clutch) |
| Primary gear ratio |
4,059 |
| Gear ratio |
i1：2.833/i2：1.761/i3：1.238/i4：0.958 |
| Output transmission mode |
Chain |
| Dimensions (length × width × height) mm |
460×300×260 |
| Kg |
KG |
| Magneto ignition advance angle |
Before top dead center 27º±2º |
| kW(r/min±5%) kW(r/min±5%) Calibration power and corresponding speed kW (r/min ± 5%) |
1.8KW/8000±500r/min |
| N.m(r/min±5%) N.m(r/min±5%) Maximum torque and corresponding speed N.m (r/min±5%) |
3.0N.m/5000±500r/min |
| g/Kw.h g/Kw.h The minimum fuel consumption rate is less than g/Kw.h |
≤367 |
