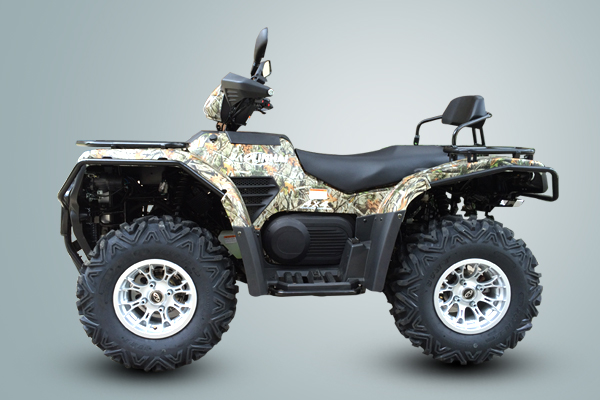

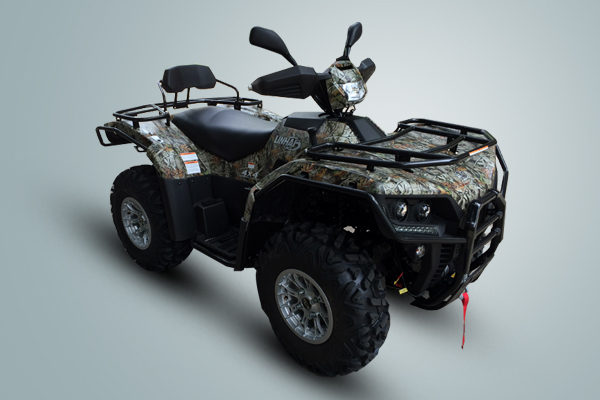

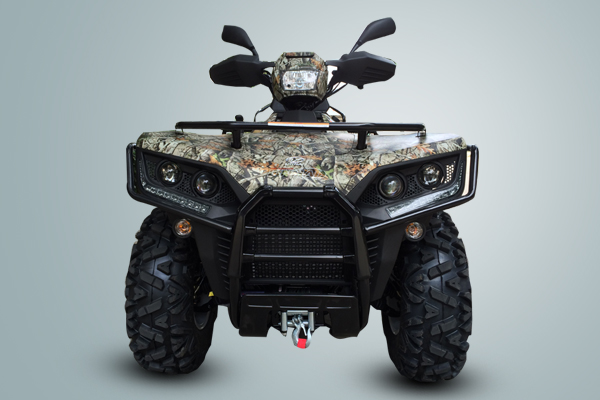

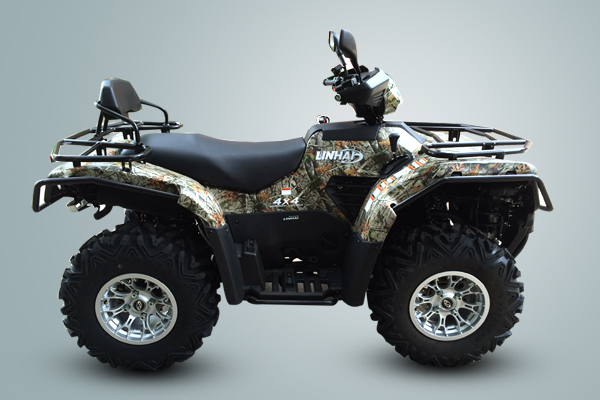

LH700ATV

Overview

LINHAI ATV700 DISPLACEMENT: 694.6CC
SINGLE CYLINDER,4-VALVE,4STROKE, WATER COOLING,SOHC
MAX POWER: 40.8HP
SUSPENSION: DOUBLE A-ARM INDEPENDENT, DOUBLE SUSPENSION
2WD-4WD ELECTRONIC SWITCH
FUEL TANK CAPACITY: 16L
CLEARANCE: 250MM

Specifications

Vehicle	Model	LH700ATV
	Length×Width×Height	2275×1210×1260 mm
	Wheelbase	1345mm
	Seat height	925mm
	Mini Ground Clearance	250mm
	Mini Turning Diameter	5000mm
	Fuel Capacity	16L
	Weight	382kg
	Payload Capacity	150kg
	Drive	Switchable 2WD/4WD
Engine	Type No.	LH1102U
Classis	Brake	Hydraulic
	Suspension	Front: McPherson independent suspension；Rear: Twin-A arm independent suspension
	Shock Absorber	Spring Preloaded,Oil Damping
	Rim	Front: AT26X9-12 Rear: AT26X10-12
	Tire Pressure(kpa)	Front:100kPa;Rear: 100kPa
Certificate		EEC
Color(s) Available		RED,BLACK,White
Loading QTY. of 40'HC		27

Engine

Type No.	LH1102U
Model	One Cylinder、4-Stroke、Water and Oil Cooling, SOHC
Displacement	695cc
Stroke and Bore	102mmX85mm
Compression Ratio	10.2:1
Max torque and REV	58Nm/4500(r/min)
Max Output Power	30kw
Max Speed	95km/h
Start Type	Electric
Ignition Type	CDI
Transmission	CVT
